AVERVE TRIMSET
TrimSet Benefits:
Protect All Panel Edges
An aesthetic architectural feature that provided essential thin panel protectionTrimSet’s beautiful satin anodized profiles provide protection from inherent wear and damage to panel edges at the corners, perimeter conditions and mid-wall.
- Extruded from 6063 T5 aluminum in 10’ lengths
- There are no minimums—order each profile as the application dictates
- Trimset and panels can be installed with standard construction adhesive
Accommodates All Finishes
Tie multiple finishes together with TrimSetLike the image shown above, TrimSet can be used with a variety of finishes in a single installation:
- back-painted glass
- porcelain
- graphics
- metal panels
- compact laminates with woodgrain finish
Installation is Simple
Four basic steps to installing TrimSet- Install base and edge trim with construction adhesive
- Pin Nail trim until the adhesive is set
- Add panels working horizontally across the elevation.
- Install Trimset edge or Trimset Outside Corner at the finish edge of the elevation.
TrimSet Decorative Trim Extrusions:

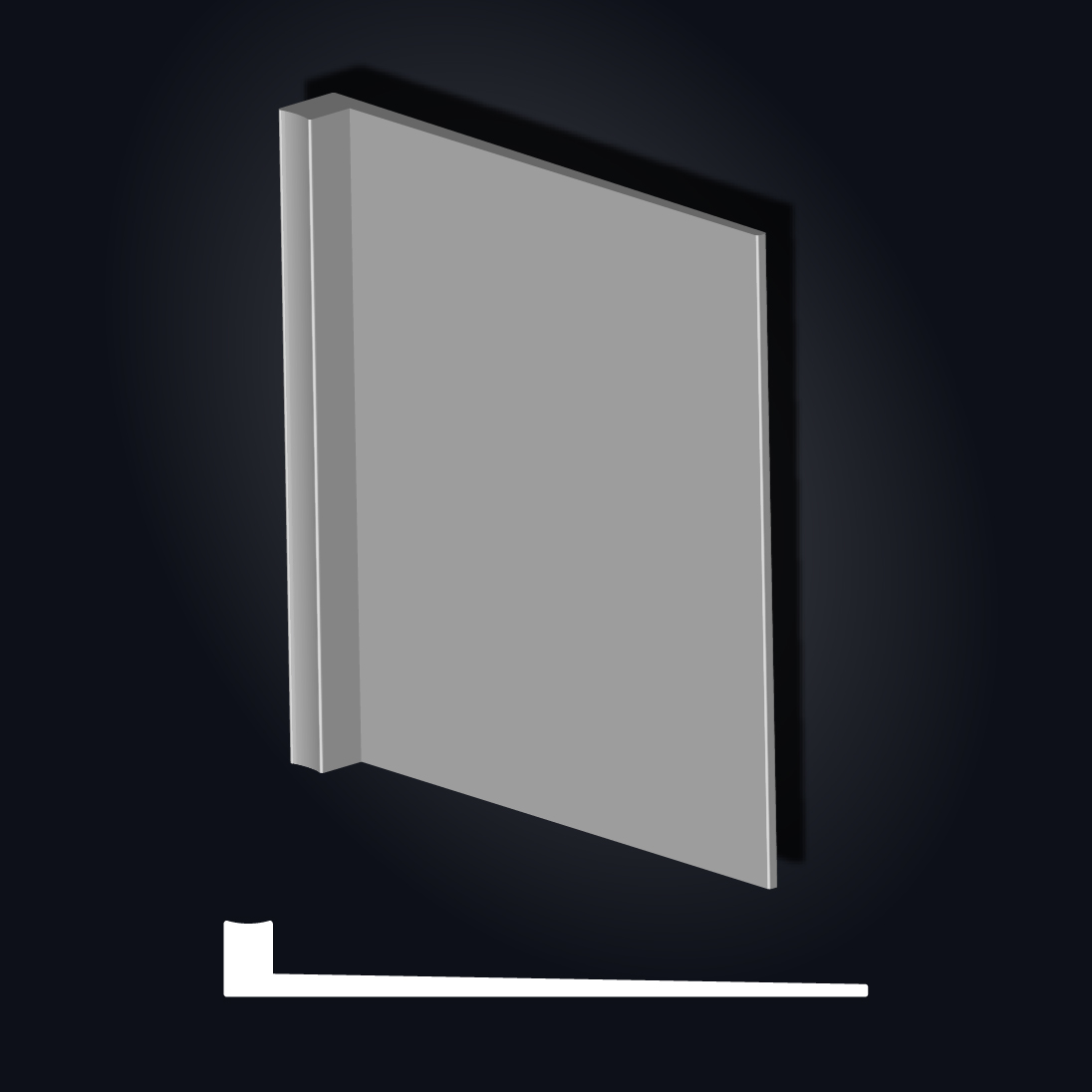

Edge Trim
Used at the outer edges where standard wall/perimeter pillars meet the panel edge. Can also be used for interior corners, creating a thin-line decorative bead, that completes the overall trim aesthetic.

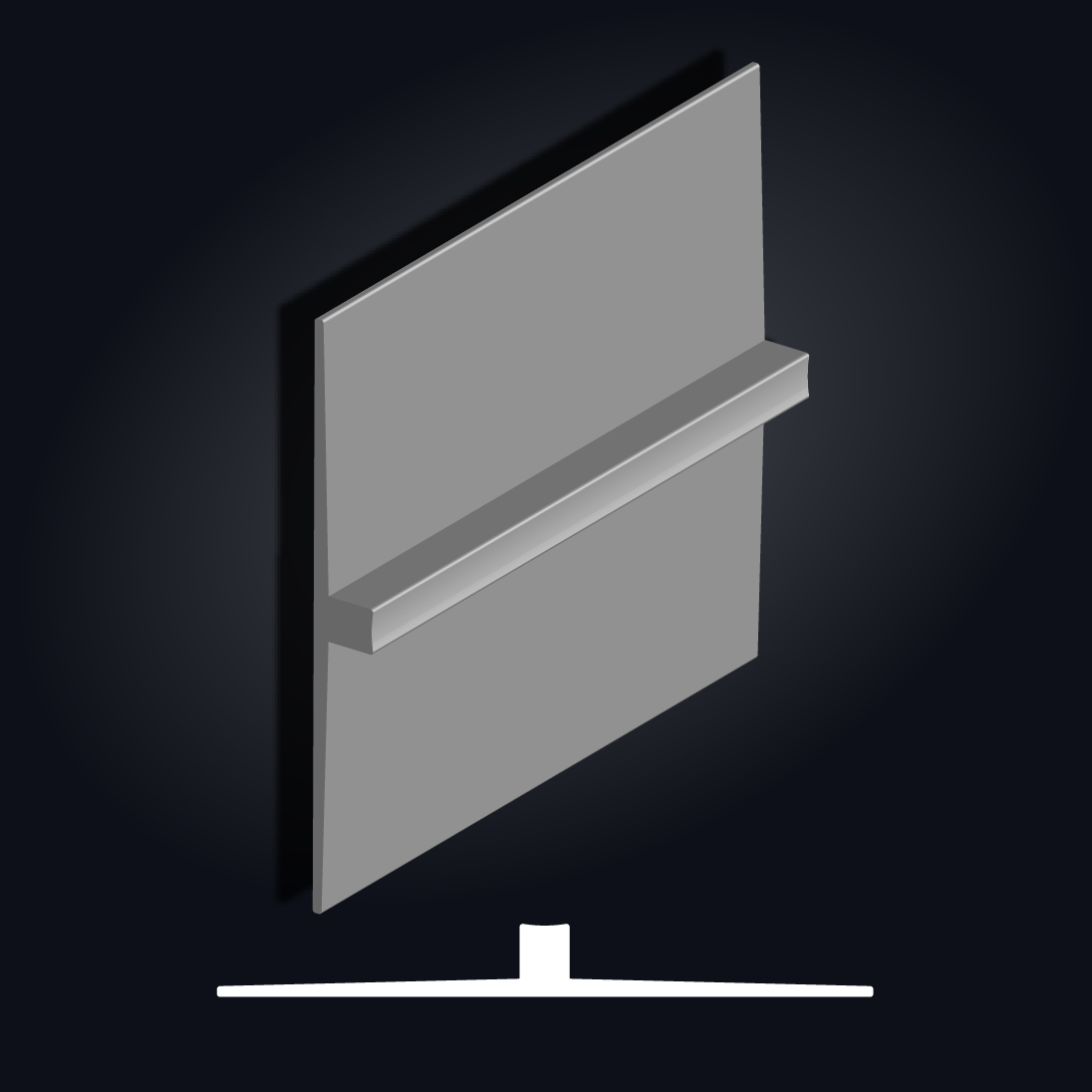

Midwall Trim
Used at either a vertical or horizontal meeting of two panels edges, the midwall trim protects the inner edges where two panels meet, creating the overall grid-like aesthetic.

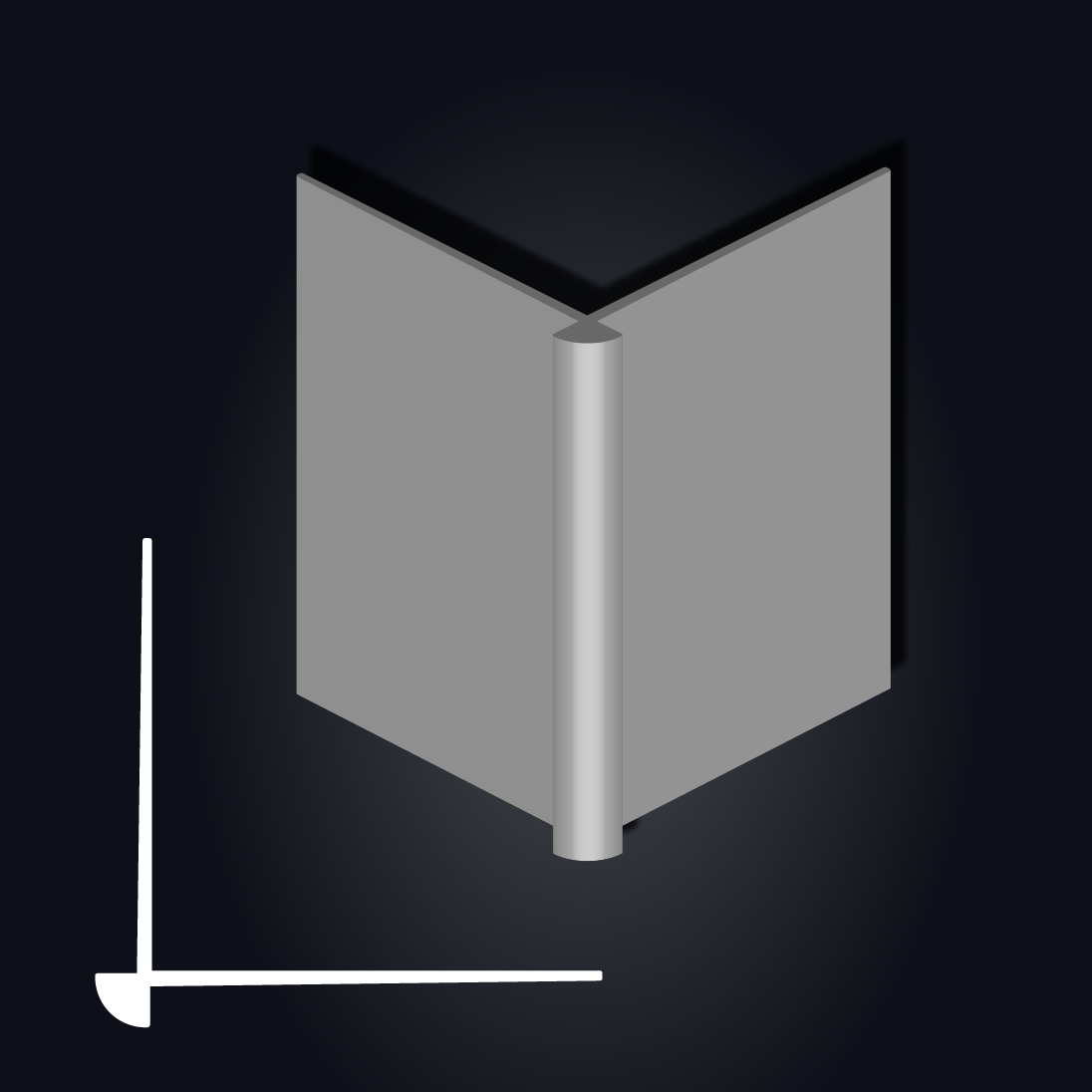

Outside Corner
An incredibly durable trim piece that provides the much needed protection of the exposed outside facing corners of an installation. Can also be used for horizontal corners such as soffits, sills or insets.

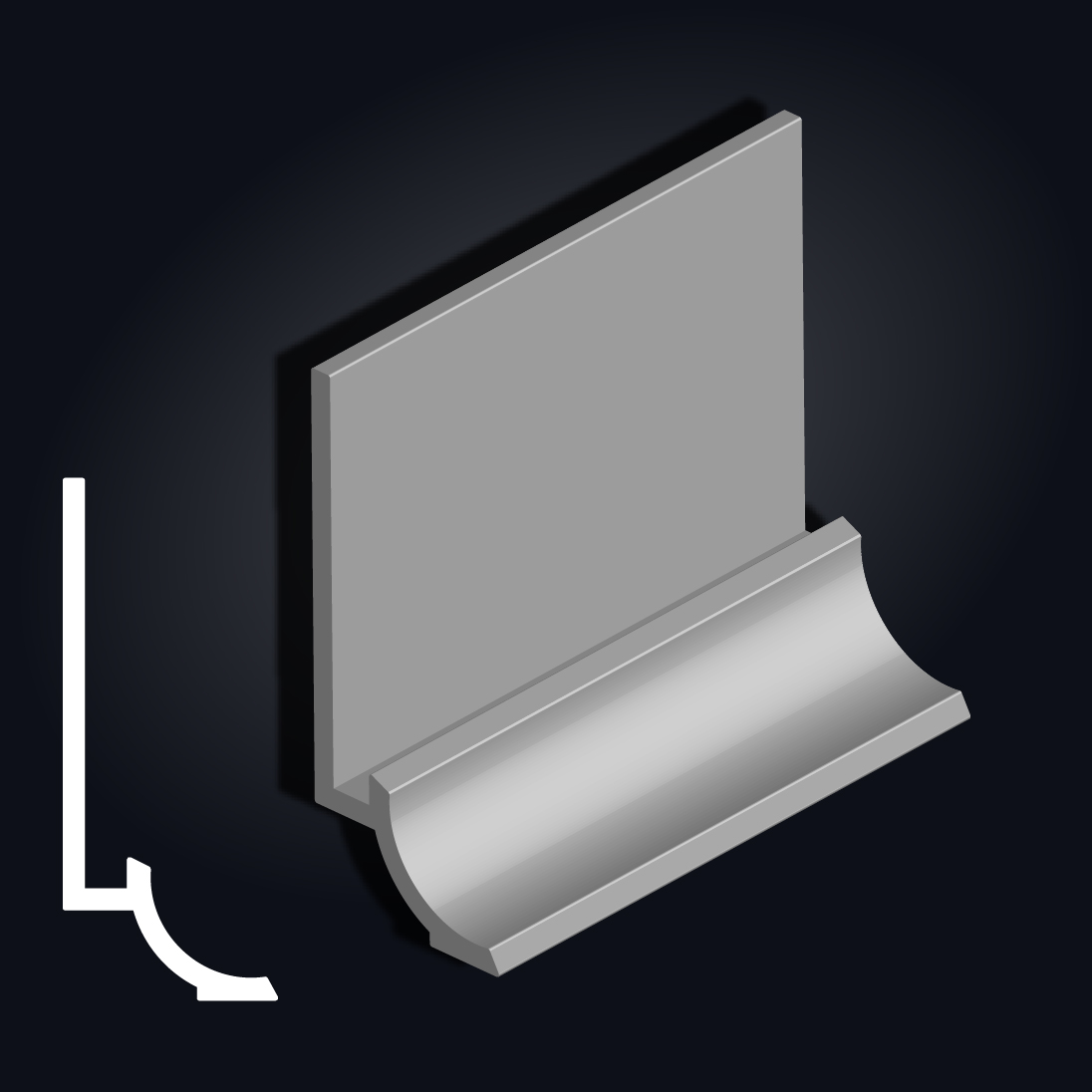

Base Cove
This beautifully arced cove piece accentuates the wall to floor transition while providing the added protection to the bottom edge of the panel. Can also be used for wall to ceiling and inner-corner transitions where panels meet standard wall or structural supports.
